Understanding Phone Display Types
The display is the most important component you interact with on your smartphone. It determines image quality, color accuracy, battery life, and even eye comfort. In 2026, the display technology landscape has evolved significantly, with AMOLED panels dominating over 63% of all smartphones shipped globally.
Understanding display types helps you make smarter purchasing decisions. Whether you're choosing between a budget phone with an IPS LCD or a flagship with a Dynamic AMOLED panel, this guide explains every major display technology available in 2026.

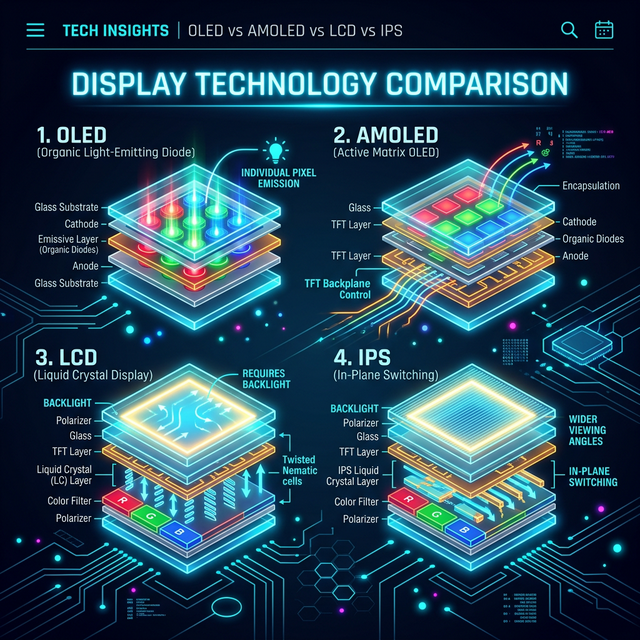

LCD (Liquid Crystal Display)
How LCD Works
LCD displays use a backlight — a light source behind the screen — that illuminates liquid crystals arranged in pixels. These crystals twist and filter light to create images. Because the backlight is always on, LCD screens cannot produce true black (they appear dark gray instead).
Types of LCD
TFT LCD (Thin-Film Transistor)
The oldest and most basic LCD technology. TFT LCDs offer acceptable image quality at low cost but have limited viewing angles and color reproduction. Still found in entry-level smartphones in 2026.
IPS LCD (In-Plane Switching)
An improvement over TFT, IPS LCD provides significantly better color accuracy and wider viewing angles. The liquid crystals are aligned horizontally, allowing light to pass through more uniformly. IPS remains the preferred LCD technology for mid-range phones.
LTPS LCD (Low-Temperature Polycrystalline Silicon)
LTPS offers higher pixel density and faster response times than standard IPS. It's used in higher-end LCD phones but is seeing reduced demand as AMOLED prices decrease.
LCD Pros and Cons
| Pros | Cons |
|---|---|
| Lower manufacturing cost | No true blacks (backlight always on) |
| No burn-in risk | Lower contrast ratio |
| Consistent brightness across screen | Higher power consumption |
| No PWM flickering issues | Thicker panel design |
OLED (Organic Light-Emitting Diode)
How OLED Works
OLED displays are self-emissive — each pixel produces its own light using organic compounds. When a pixel needs to display black, it simply turns off completely, consuming zero power. This results in perfect blacks, infinite contrast ratios, and significantly better energy efficiency when displaying dark content.
Types of OLED
AMOLED (Active-Matrix OLED)
The most common OLED technology in smartphones. AMOLED uses an active matrix of thin-film transistors to control each pixel individually. This enables faster refresh rates, better color control, and excellent response times. Samsung Display is the world's largest AMOLED manufacturer.
Super AMOLED
Samsung's proprietary enhancement of AMOLED that integrates the touch sensor directlyinto the display panel. This eliminates the air gap between the touch layer and the display, resulting in thinner construction, better outdoor visibility, and reduced glare.
Dynamic AMOLED
The latest evolution, Dynamic AMOLED supports HDR10+, 100% DCI-P3 color gamut, and reduced blue light emission. Found in Samsung's flagship Galaxy S series and foldable phones. For more on Samsung's hardware, check our guide on Samsung Exynos processors.
LTPO OLED
LTPO (Low-Temperature Polycrystalline Oxide) technology enables variable refresh rates — the display can dynamically switch between 1Hz and 120Hz based on content. This dramatically saves battery when displaying static content like reading or viewing photos.
OLED Pros and Cons
| Pros | Cons |
|---|---|
| True blacks and infinite contrast | More expensive to manufacture |
| Better power efficiency (dark content) | Potential for burn-in over time |
| Faster response times | PWM flickering at low brightness |
| Thinner and lighter panel | Color shift at extreme angles |
| Flexible (enables foldable phones) | Slightly lower peak brightness than some LCDs |

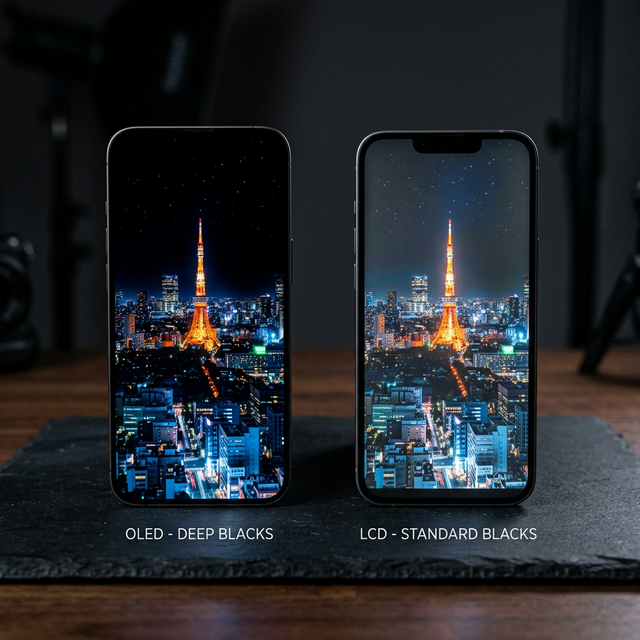

OLED vs LCD: Detailed Comparison 2026
| Feature | OLED/AMOLED | IPS LCD |
|---|---|---|
| Black Levels | Perfect (pixels off) | Dark gray (backlight on) |
| Contrast Ratio | Infinite | 1000:1 – 1500:1 |
| Color Accuracy | Excellent (DCI-P3) | Good (sRGB) |
| Viewing Angles | Excellent | Good (IPS) |
| Battery Efficiency | Better (dark themes) | Consistent |
| Burn-in Risk | Yes (long-term) | No |
| Eye Comfort | PWM can cause strain | No PWM flickering |
| Thickness | Thinner | Slightly thicker |
| Flexibility | Flexible (foldable) | Rigid |
| Cost | Higher | Lower |
| Market Share 2026 | 63%+ | Declining |
Latest Display Innovations in 2026
NXTPAPER AMOLED (TCL)
TCL introduced NXTPAPER AMOLED at MWC 2026, combining the vibrancy of AMOLED with eye-care features including 15% reduced blue light, 90% circular polarization mimicking natural light, and anti-glare nanomatrix lithography. This technology aims to make AMOLED as comfortable as e-paper for extended reading.
Flex Magic Pixel (Samsung Display)
Samsung Display unveiled AI-optimized OLEDs with "Flex Magic Pixel" at MWC 2026. This feature uses AI to control light direction at the pixel level, creating a privacy display that prevents others from viewing your screen at off-axis angles.

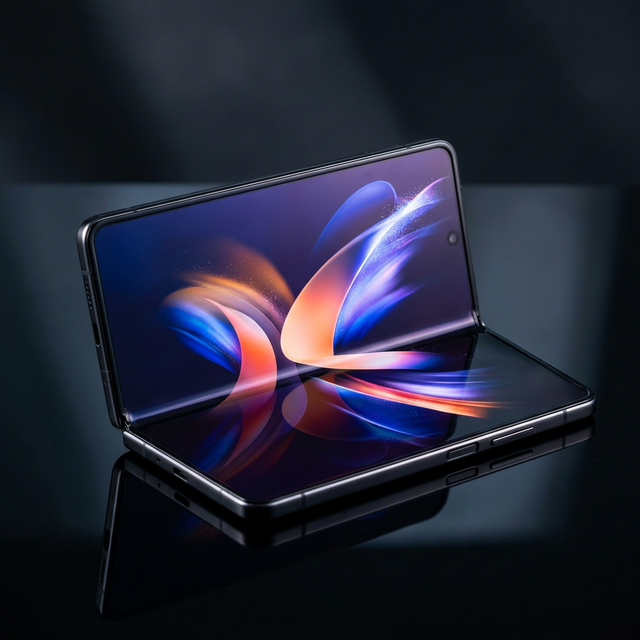

Crease-less Foldable OLED
Samsung Display showcased a crease-less foldable OLED panel at CES 2026, addressing one of the biggest complaints about foldable phones. Ultra-Thin Glass (UTG) improvements make the fold nearly invisible while maintaining durability.
MicroLED
MicroLED technology combines the best of both worlds — the self-emissive quality of OLED with the brightness and longevity of inorganic LEDs. While not yet available in smartphones, MicroLED promises higher brightness, longer lifespan, and zero burn-in risk. It's expected to appear in premium phones by 2027–2028.
How Display Type Affects Your Phone Experience
Battery Life
OLED displays consume less power when showing dark content because black pixels are turned off. Enabling dark mode on an OLED phone can reduce display power consumption by up to 42% at full brightness. Learn more in our guide on adjusting screen settings to extend battery life.
Gaming and Media
OLED's faster response times and higher contrast make it superior for gaming and video streaming. HDR10+ support on Dynamic AMOLED panels delivers cinematic quality. For multiplayer gaming experiences, see our list of cooperative games for multi-players.
Eye Comfort
OLED displays use Pulse Width Modulation (PWM) to adjust brightness, which can cause eye strain in sensitive users. DC dimming and new NXTPAPER technologies are addressing this. IPS LCDs naturally avoid PWM flickering, making them better for users with light sensitivity.
Choosing the Right Display for Your Needs
Recommendation by Use Case
- Best for media consumption: AMOLED or Dynamic AMOLED
- Best for budget phones: IPS LCD
- Best for eye comfort: IPS LCD or NXTPAPER AMOLED
- Best for battery: LTPO OLED with dark mode
- Best for outdoor use: Super AMOLED with high peak brightness
Looking for affordable phones with good displays? Check out the best affordable smartphones in Pakistan.
Frequently Asked Questions (FAQ)
Is AMOLED always better than LCD?
Not always. While AMOLED offers better contrast and darker blacks, some users prefer IPS LCD for its lack of PWM flickering and consistent brightness. For budget phones, a good IPS LCD can be a better value than a cheap AMOLED.
Does dark mode save battery on all phones?
Dark mode only saves significant battery on phones with OLED/AMOLED displays. On LCD phones, the backlight remains on regardless of screen content, so dark mode provides minimal battery savings. For detailed tips, check our screen settings guide.
What is burn-in and should I worry about it?
Burn-in occurs when static elements (like navigation bars or clock displays) leave a permanent ghost image on OLED screens. Modern AMOLED panels have significantly reduced this risk with pixel-shifting algorithms and improved organic materials. For normal use, burn-in is unlikely within a phone's typical 3–4 year lifespan.
What does refresh rate have to do with display type?
Both LCD and OLED can support high refresh rates (90Hz, 120Hz, 144Hz). However, LTPO OLED exclusively enables variable refresh rates (1Hz–120Hz), which provides smooth visuals when needed and saves battery when the screen is static.
Which display type is best for reading?
For extended reading, IPS LCD is traditionally preferred for its lack of PWM flickering. However, new NXTPAPER AMOLED technology from TCL is bridging this gap by combining AMOLED vibrancy with e-paper-like comfort. Browse the latest Samsung phones to compare display specs.
